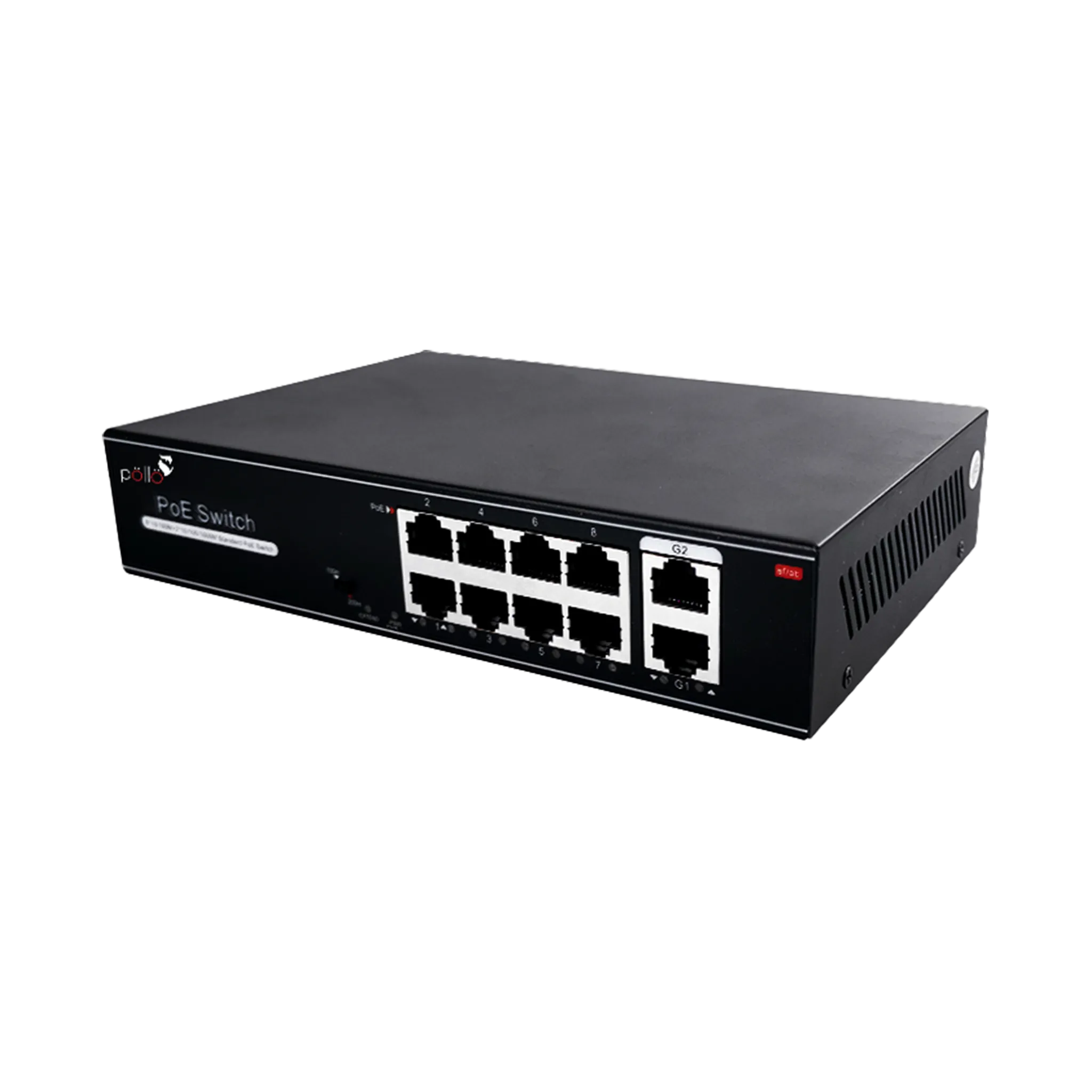

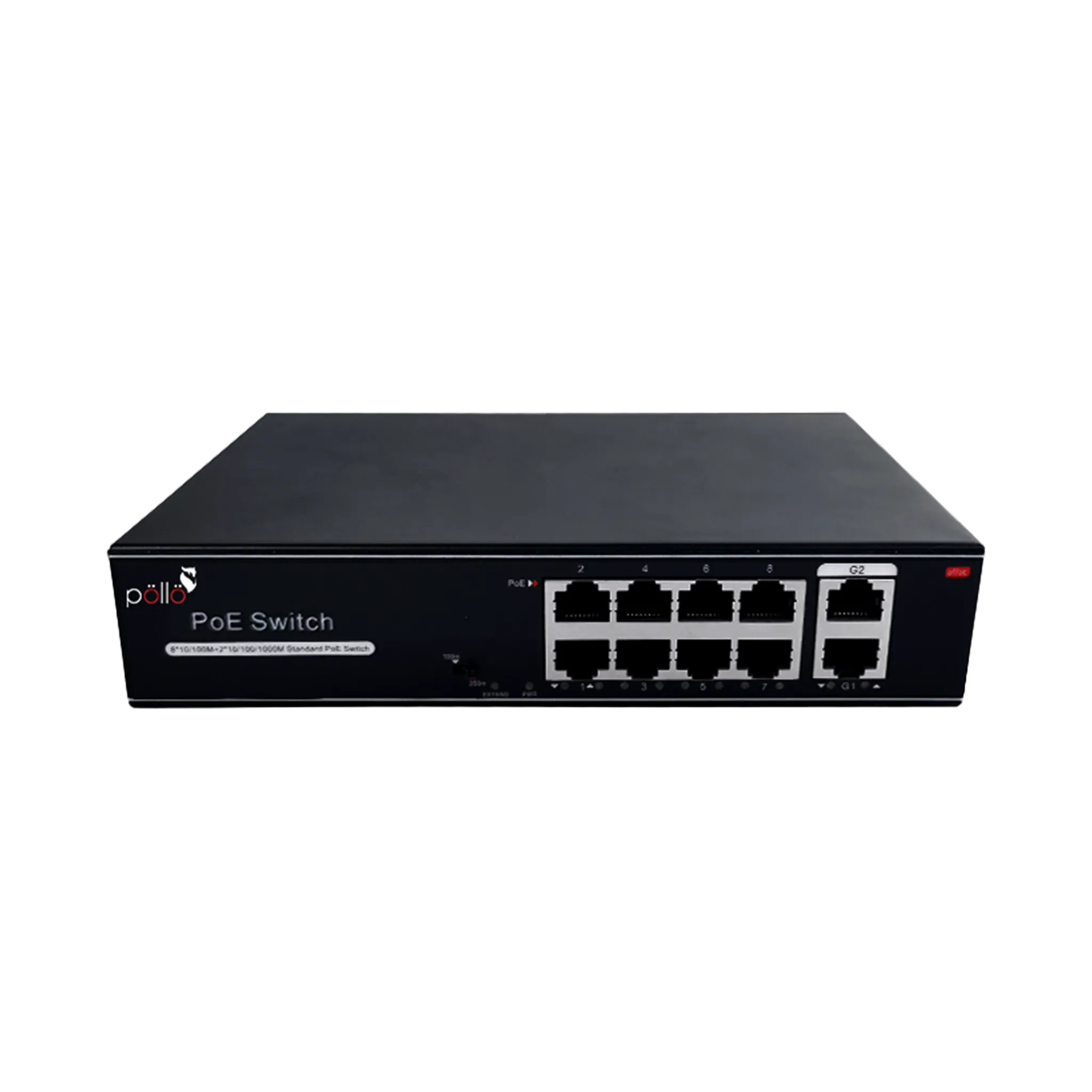

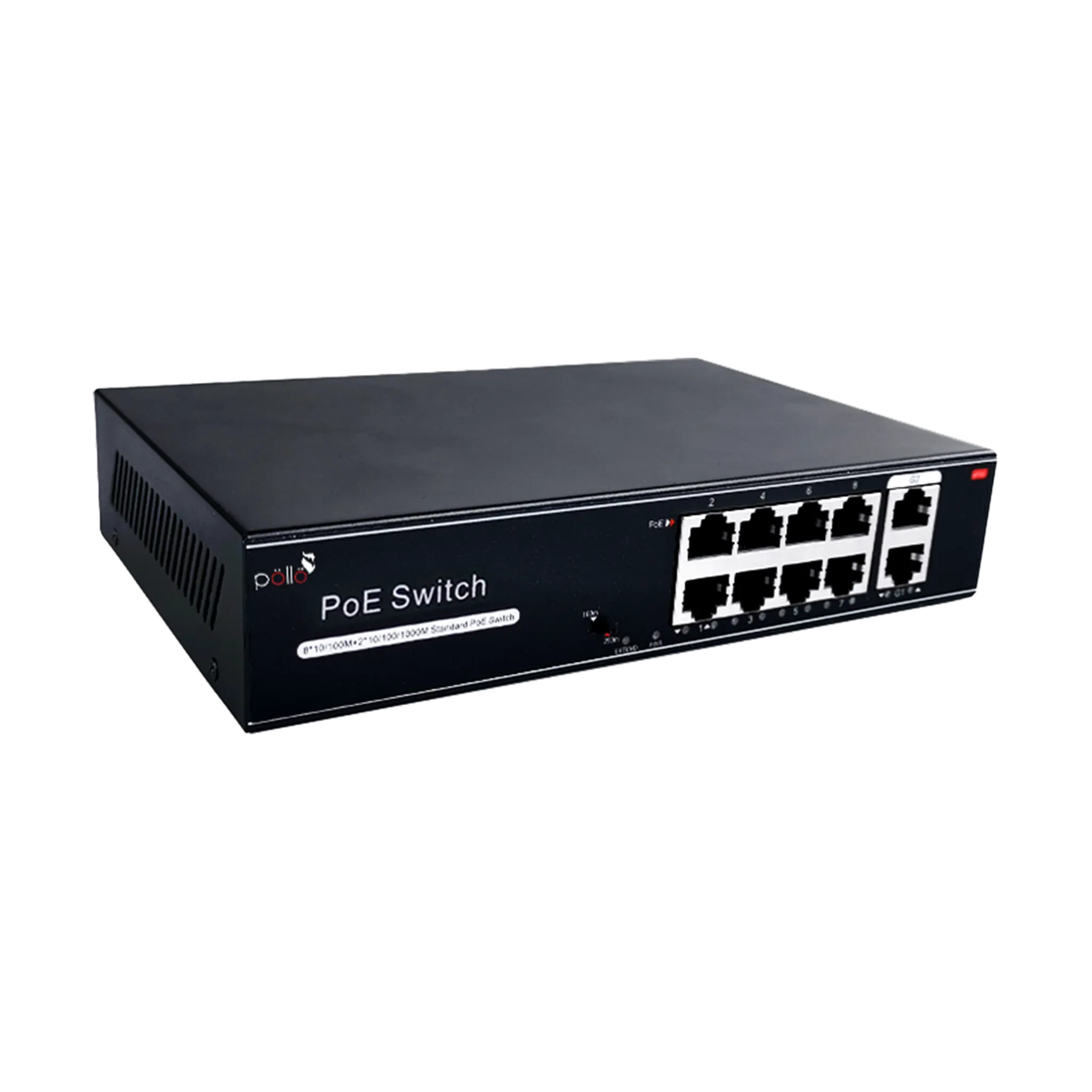

PLN-1108MGB

• 8 × 10/100Base-TX PoE ports for data and power
• 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
• Ports 1–8 support 10/100 Mbps, ports 9–10 support 10/100/1000 Mbps
• Full/half-duplex operation with MDI/MDI-X auto-adaptation
• Built-in Extender mode for long-distance transmission
• Extended transmission up to 250 m on Cat5 UTP
• Complies with IEEE 802.3 / 802.3u / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 11.8 Gbps non-blocking switching capacity
• 4.17 Mpps forwarding rate @64-byte packets
• 3K MAC address table with 2 MB buffer memory
• IEEE 802.3af/at PoE supported on ports 1–8
• Maximum 30 W per PoE port
• Total PoE power budget up to 120 W

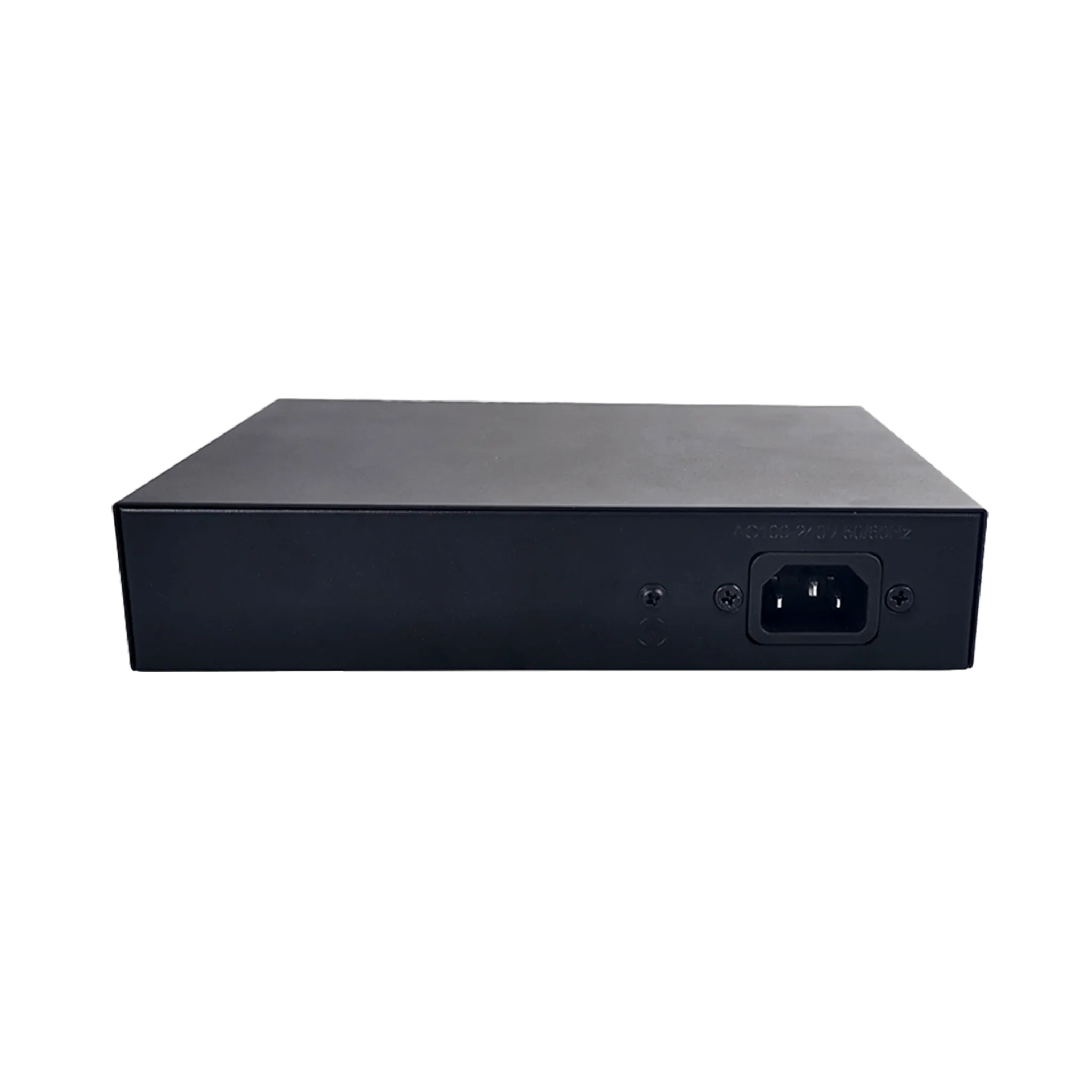

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <5 W standby, <120 W full load
• LED indicators for power, link, PoE, and extender status
• Operating temperature range -20°C to +55°C
• Desktop and wall-mount installation options
• 4 KV lightning protection, IP30 protection level
• Certified: CCC, CE, FCC, RoHS

View Datasheet
How to Buy?

AI PoE Switches for Every Network

Whether it’s a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.

Built for Server-Grade Performance

Designed for rack environments, Pollo’s AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.

Protection at the Core of Your Network

From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
