PLN-1104MB

• 4 × 10/100 Mbps PoE ports for data and power
• 2 × 10/100 Mbps uplink RJ45 ports
• Ports 1–6 support auto-detection and MDI/MDI-X auto-sensing
• Supports full and half-duplex transmission
• Extender + CCTV functional switch (restart required after switching)
• Extended transmission up to 250 m on 10BASE-TX
• Standard transmission up to 100 m on 100BASE-TX
• Compliant with IEEE 802.3, 802.3u, and 802.3x standards
• Store-and-forward forwarding mode
• 1.6 Gbps non-blocking switching capacity
• Forwarding rate up to 0.98 Mpps
• 1K MAC address table
• 768 KB buffer memory
• IEEE 802.3af/at PoE support on ports 1–4
• Up to 30 W PoE power per port
• Total PoE power budget of 65 W

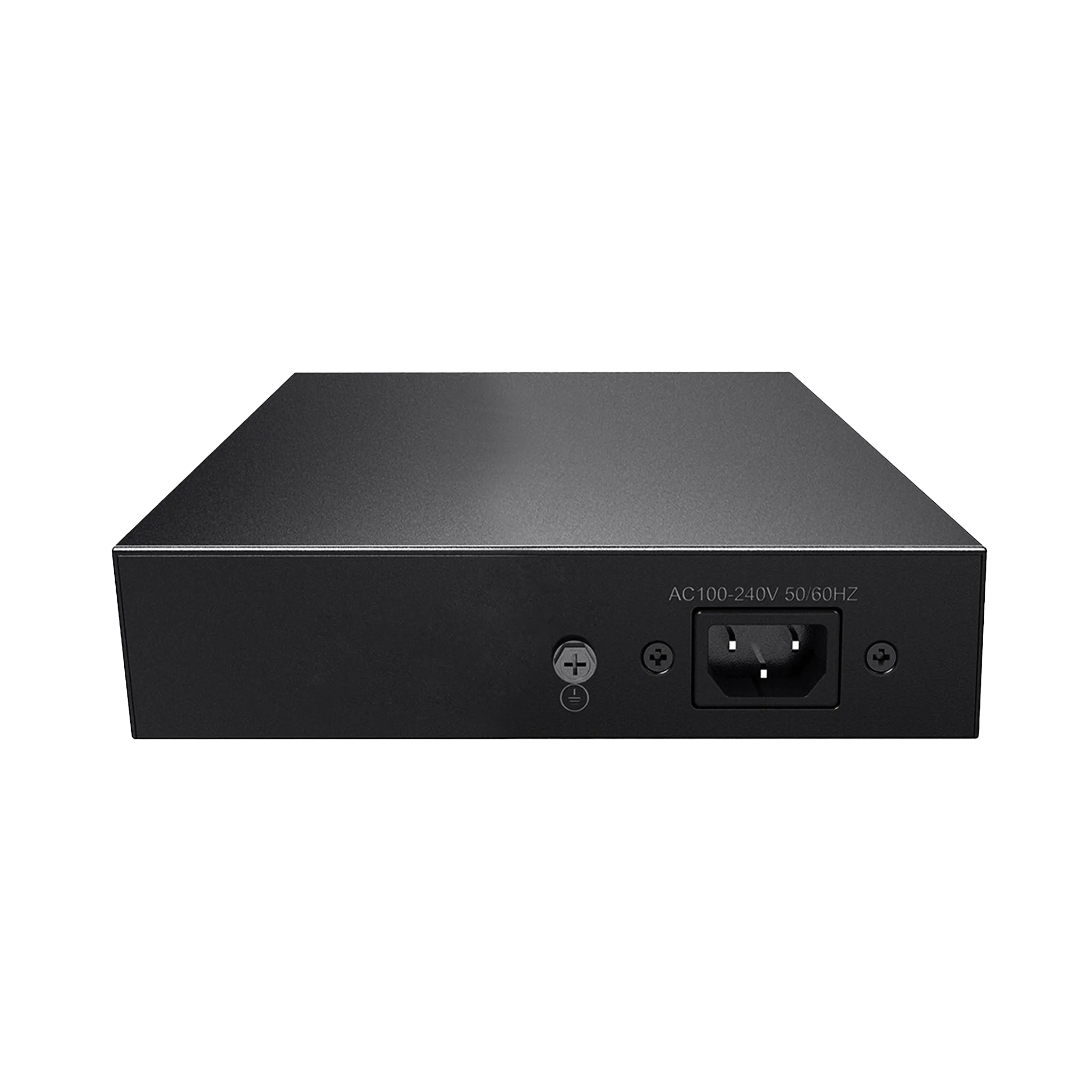

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption (<3 W standby)
• LED indicators for power, network, PoE, and extend mode

View Datasheet
How to Buy?

AI PoE Switches for Every Network

Whether it’s a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.

Built for Server-Grade Performance

Designed for rack environments, Pollo’s AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.

Protection at the Core of Your Network

From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
